Bosch GAM 220 MF Professional Angle Measurer GAM220MF

Bosch GAM 220 MF Professional Angle Measurer To Calculate Single & Double Mitre Angles – 0601076200

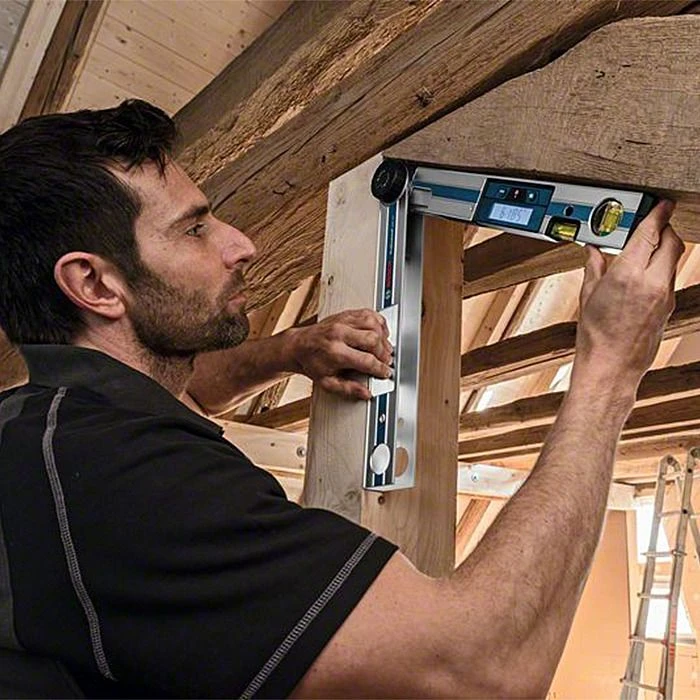

The Bosch angle measurer automatically calculates single and double mitre angles. The angle measurer has an arm extension for hard to reach areas. Acoustic signal, a display that can be read from various angles along with memory and calculations functions allow the angle measurer to make difficult tasks simple.

Features:

• Precise mitre angles at the press of a button
• Automatic calculation of single and double mitre angles without any other tools
• Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
• Including arm extension for measuring in hard-to-reach areas
• Easy to operate: acoustic signal transmitters, memory and calculation functions, and displays that can be read overhead all serve to make work easier
• No calibration required
• Robust and compact design

Bosch GAM220MF Instruction Manual

Technical Specifications:

Shipping Weight:…..1.30kg
Measurement range:…..0° – 220°
Measurement accuracy, angles:…..± 0.1°
Measurement accuracy, vials:…..± 0.05°
Accuracy of angle calculation :…..± 0.1°
Power supply:…..4 x 1.5 V LR6 (AA)
Automatic deactivation, approx.:…..5 mins
Arm length:…..40 cm
Weight, approx.:…..1,1 kg
Length:…..432 mm
Width:…..35 mm
Height:…..61 mm
