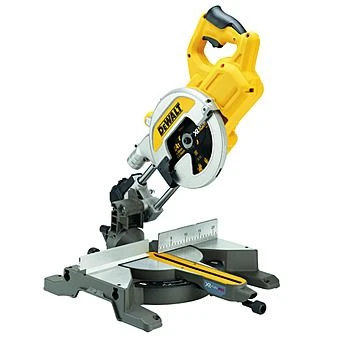

Dewalt DCS777N 54V XR FlexVolt XPS 216mm Cordless Mitre Saw Body Only

Dewalt DCS777 XPS 54 Volt 216mm Flex Volt Cordless Chop Saw | Bare Unit

Please note: This is a bare unit only: No batteries or charger are included.

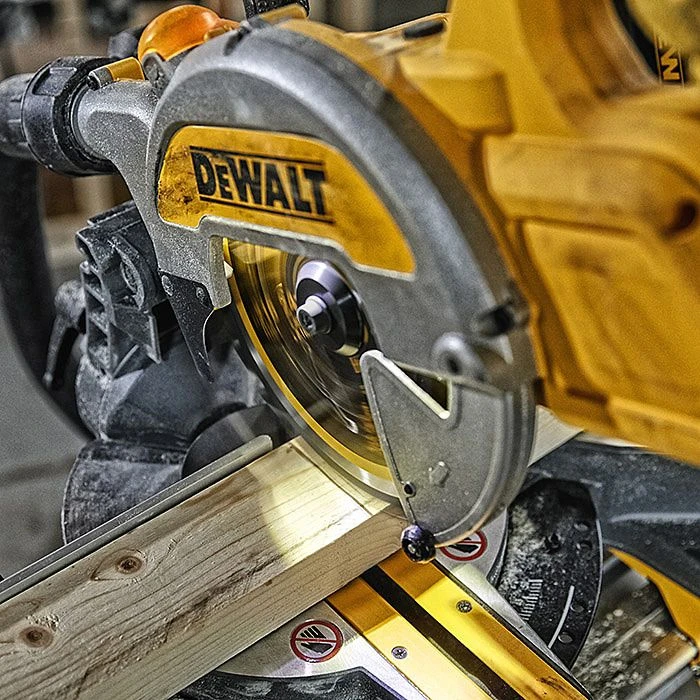

True to Dewalt nature the DCS777N cordless mitre saw uses integrated XPS shadow technology to provide a clear cut indicator facilitating fast and accurate blade alignment while a built in LED worklight illuminates the work piece. No adjustment to the LED is required. Illuminates the work area even in bright conditions.

Built from the classic table saw design with a modern twist to suit, the DCS777N mitre saw boasts a new and improved dust extraction facility and is compatible with Dewalt airlock dust extraction systems. The base and fence have been machined to meet the requirements of tough applications whilst an intuitive head lock function allows the head to be fixed for traverse and trim applications.

It’s powerful brushless motor delivers a cutting capacity of 270mm x 60mm offering up to 220 cuts of 38mm timber per single charge. Integrated left and right positive mitre stops 50º/50º enhances it’s range of useful applications. Additional features include a sliding left hand fence with calibrated scale and a compact internal rail design that delivers a huge cutting capacity.

Features:

• XPS Shadow line cut system.
• LED light.
• Machined base and fence.
• Compact internal rail for huge cutting capacity.
• Sliding left hand fence.
• Integrated positive mitre stops (left & right).
• Head lock function.
• Improved dust extraction.
• Brushless motor.

Technical Specifications:

Shipping Weight:…..18.10kg
Manufacturer:…..DeWalt
Voltage:…… 54V
Blade Speed:….. 6300rpm
Blade Diameter:…… 216mm
Bevel Capacity:…… 48º
Mitre Capacity (L/R):…… 50/50º
Cutting Capacity at 90°/45° [W x H]:……. 173 x 62 mm
Cutting Capacity at 90°/90° [W x H]:…….. 270 x 62 mm
Cutting Capacity at 90°/90° [W x H]:…….. 270 x 60 mm
Cutting Capacity at 45°/90° [W x H]:……. 189 x 62 mm
Cutting Capacity at 45°/90° [W x H]:……. 190 x 60 mm
Cutting Capacity at 45°/90° [W x H]:……. 270 x 60 mm
Max. Cutting Capacity at 45°/45Î:……. 190 x 48 mm
Max. Depth of Cut:……. 80 mm
