Draper 34677 Expert 98L 12V DC ATV Spot Sprayer

Expert 98l 12V DC ATV Broadcast Sprayer | Draper SS98L

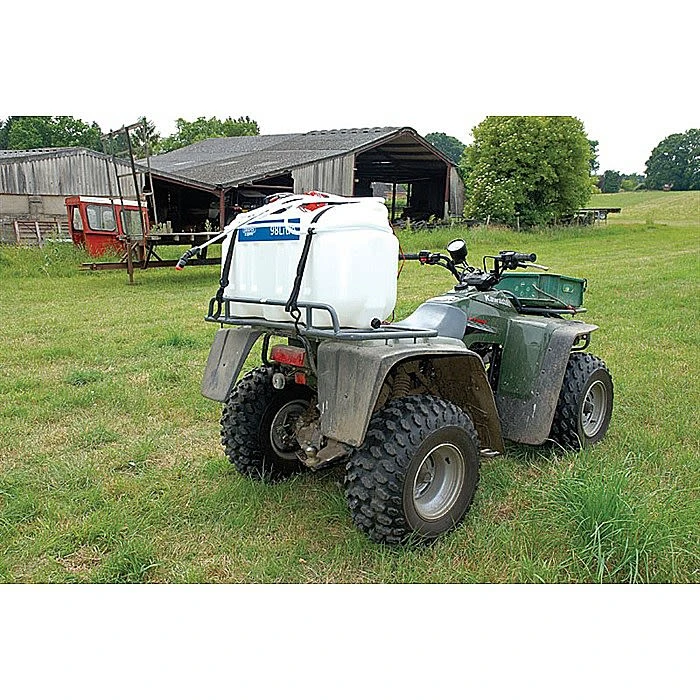

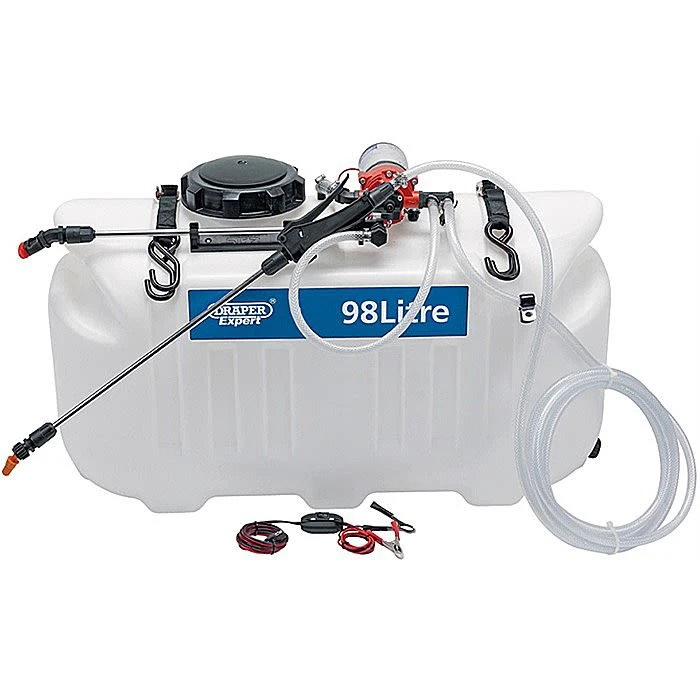

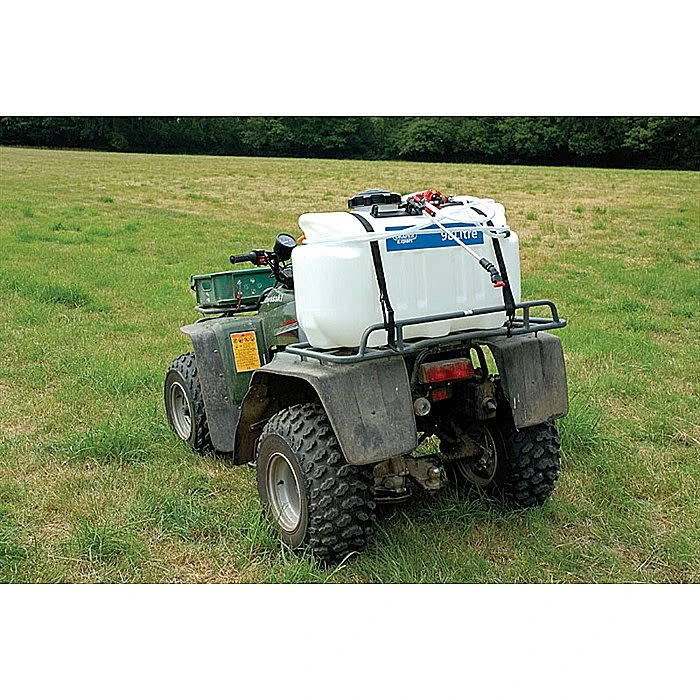

The Draper Expert quality Spot sprayer mounts to quad bikes or four wheelers which makes it ideal for commercial, domestic and agricultural uses, including in areas such as gardens, parks, paddocks and golf courses. The sprayer is supplied with two lances, one attached to the tank bracket for broadcast spraying and the second with a trigger for hand operation. The 34677 is powered by a 12V battery or connected via the electric 12V motor on the ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank has been manufactured from special chemical resistant polymers for an extra long life. The sprayer is supplied with straps for fixing to the ATV and switch for remote operation.

Features:

• Mounts to any all-terrain vehicle (ATV).
• One attached to the tank bracket for broadcast spraying.
• Second with a trigger for hand operation.
• Pump powered by a 12V battery or connected via the electric motor.
• Pressure activated diaphragm pump produces a smooth flow.
• Manufactured from special chemical resistant polymers.
• Can be used for spraying fertilizer, weed killer and de-icer.
• Supplied with straps for fixing to the ATV.

Technical Specifications:

Shipping Weight:…..11.41kg
Max Flow rate (b/cast lance):….. 8.3L/min
Max Pressure (b/cast lance):….. 70psi (4.86bar)
Max Flow Rate (hand lance):….. 3.8L/min
Max Pressure (hand lance):….. 40psi (2.76bar)
Spray Pattern:….. Stream/Cone
Hose length (hand lance):….. 4.5m
Length:….. 864mm
Width:….. 368mm
Height:….. 622mm
Weight:….. 9.9kg (empty)
