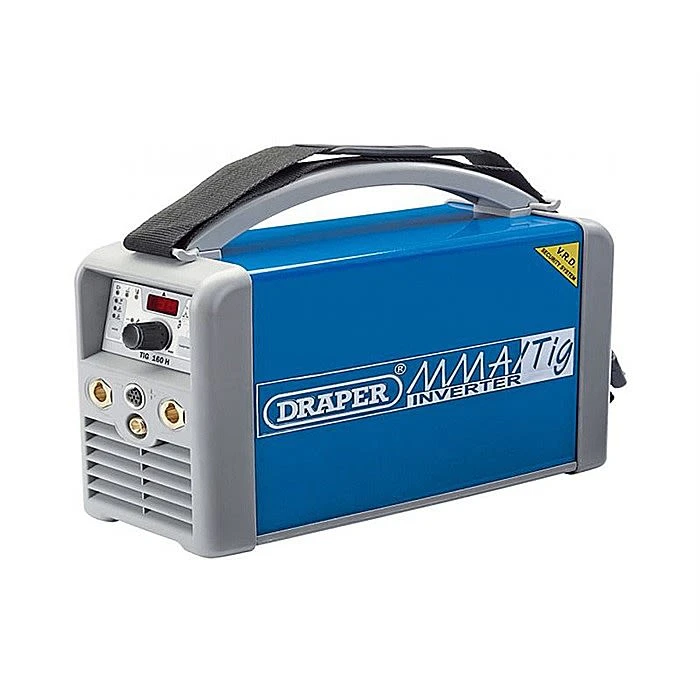

Draper TIG Welder 160 Amp High Frequency MMA Inverter Welder 09116

Draper 09116 MMA/TIG High Frequency Welder 230 Volt

The Draper TIG welder is ideal for awkward welds such as S-Shapes, curves, corners or where the weld is going to be visible and where a precise and accurate finish is required. The Draper TIG welder allows a wider range of metals to be welded in comparison to other welders. TIG welding ideal for cosmetic welds like sculptures, architectural and automotive welds.

Features & Benefits:

• TIG welding allows you to create clean welds when appearances count
• Microprocessor-controlled inverter technology
• TIG DC welding
• Pre-gas and post-gas time adjustment
• Variable slope down
• TIG lift
• VRD reduces maximum unloaded open circuit voltage across the output terminals of the welding machine to a safe voltage – below 25V in order to avoid electrical shocks

Technical Specifications:

Shipping Weight:…..8.00kg
Rated max. supply current:…..14 A
Rated supply current (25%):…..24 A
Input current:…..16 A
Current range:…..4-160 A
Dimensions:…..330 x 135 x 280 mm
Protection:…..IP 23
Weight :…..7 kg
