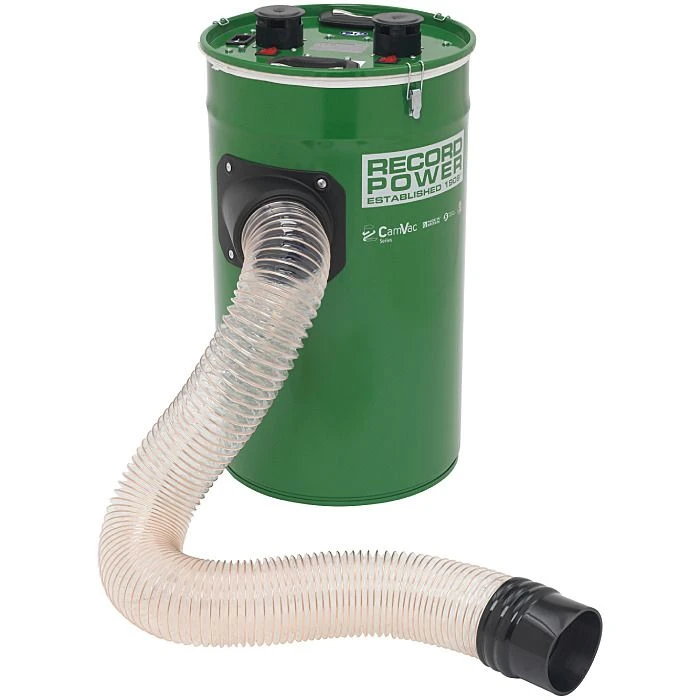

CamVac 55 Litre Medium Extractor Kit
Manufactured in the UK, this excellent dust extractor from the CamVac series by Record Power is perfect for the workshop with a large capacity 55 litre drum. It is available with either a single motor (CGV336-3) or twin-motor (CGV336-4) for greater power. CamVacs have a dust extraction port placed at such an angle as to produce a cyclone inside the body of the machine. The centrifugal force that this causes on the debris and dust particles makes them fall out of the cyclone to the bottom of the collection drum. This first layer of filtration doesn’t even require a filter, but even finer particles are then filtered out by the material filters. The kit is supplied with 2 metres of quality 100mm dust extraction hose plus a compatible easy-fit cuff. Both versions of the extractor have the new design of hose attachment which allows quick disconnection with a bayonet type fitting.
Features:
- Supplied with a 2m length of hose.
- Available with 1 or 2 motors.
- Uses cyclone to protect the filters.
- Filters remove more fine particles.
- 55 litre capacity.
- Manufactured in the UK.
Technical Specifications:
Shipping Weight:…..14.40kg
Manufacturer:…..Record
Capacity:….. 55 Litres
Filtration:….. 0.5 micron
Airflow:….. 54 Litres/second per motor
Each Motor Input Power:….. 1,000 Watts
Inlet Size:….. 4″
Bare Weight:….. 10.5 kg
Dimensions (WxDxH):….. 370 x 412 x 624 mm
