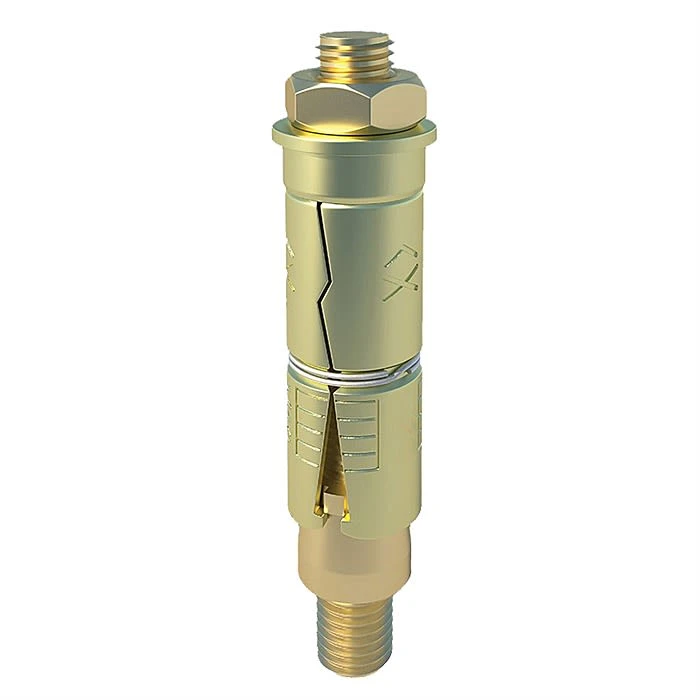

Shield Anchor Projection Bolts M12 X 75mm

Zinc Passivated Projection Bolts M12-75PB

These projection bolts have been manufactured to the highest quality standard, the three way expansion shield offers a strong, secure and reliable anchorage into masonry. The shield anchor has been zinc plated and yellow passivated to increase the durability and weather resistance. A special retaining spring wrapped around the shield ensure encapsulation of the wedge during expansion.

Features:

• 3 way expansion shield anchor for strong and secure anchorage
• Tough and reliable construction for increased holding strength
• Special retaining spring which ensures encapsulation of the wedge

Technical Specifications:

Shipping Weight:…..0.50kg
Manufacturer:…..Murpak
Length:….. 165mm
Thread:….. M12
Max FT:….. 75mm
Clearance Hole:….. 14mm
